Shaffer Spherical Annular BOP

Date:2024-05-06 Popularity:554

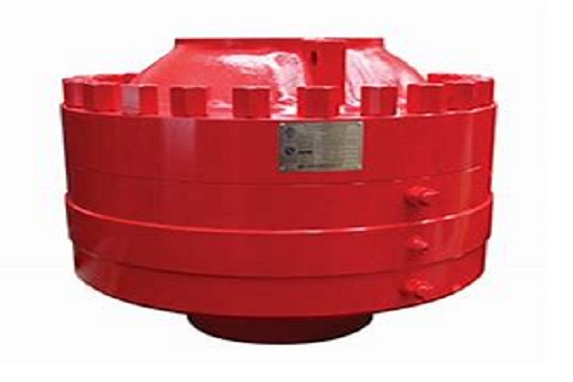

RockySea Petro Shaffer Spherical Annular BOP


  • International advanced well control equipment test lab.
  • The Shaffer spherical annular Blowout Preventer is widely used in conventional oil recovery, thermal oil recovery, offshore oil recovery, fracturing, geothermal and other fields.
  • 30+ years of Shaffer spherical annular BOP manufacturing experience..
  • RockySea Petro has been certified by ISO9001, ISO 14001 standard.
RockySea Petro Petro Blowout Preventer factory is one of the main branches of RockySea Petro Petro. It is a professional manufacturer specializing in the development, design, production, remanufacturing, maintenance, sales, and service of Shaffer spherical annular BOP.


Description

Shaffer spherical annular Blowout Preventer is an important part of the well control devices. It is mainly used to control the wellhead pressure in the drilling, well work over and oil testing effectively preventing from the blowout accidents and working in safety. Shaffer spherical annular BOP can only be used when equipped with BOP hydraulic control device it is usually used with ram blowout preventer or separately. Shaffer spherical annular BOP sealing element has spherical and conical type.

The Shaffer spherical annular BOP is a relatively new entry into the annular preventer market. It utilizes a spherical head cover ing the top of the packing unit to translate axial loading on the packing unit into radial movement. The overall height of the preventer is somewhat shorter than either the Hydril or Regan but is higher than the Type “A”. Shaffer achieved this reduction in height through the use of a short piston and the spherical geometry of the head.



Features

  • Shaffer spherical annular Blowout Preventer has well pressure facilitates sealing.
  • The Shaffer spherical annular BOP rubber core is not easy to turn over and has a funnel effect.
  • The Shaffer spherical annular Blowout Preventer dynamic seal adopts a lip-shaped seal ring to minimize the wear of the seal ring and ensure reliable sealing.

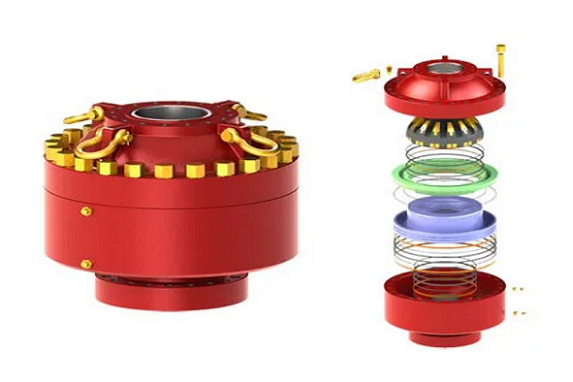

  • Shaffer spherical annular BOP use the spherical rubber core and the top cover and the shell are connected by bolts and claw blocks.
Shaffer spherical annular BOP3


Data Sheet

SizeinPressure RatingpsiProcessing typeClosing

Quantity

Opening

Quantity

WeightKG
71/165000Forging21151520
930003422.82398
9500042332986
11300050392950
1150006724675
135/8500094695738
135/81000011611715190
203/430001731106994
211/4500024118120230
