Steam Injection And Oil Recovery Wellhead

Date:2024-05-06 Popularity:1354

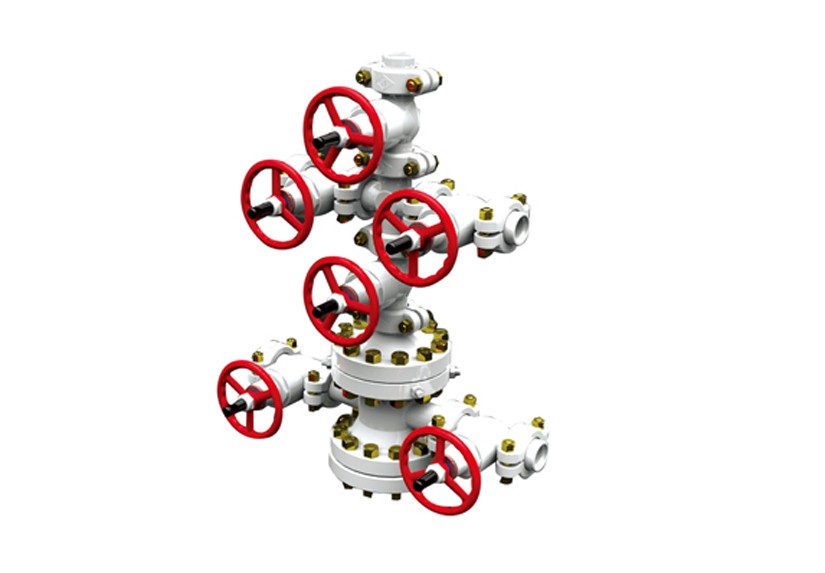

RockySea Petro Steam Injection And Oil Recovery Wellhead


  • Geothermal wellhead & x-mas tree
  • Blowout preventer Steam Injection and Oil Recovery Integration wellhead & x-mas tree
  • Steam injection and oil recovery dual tubing wellhead & x-mas tree
  • Single column dual-well thermal recovery wellhead & x-mas tree
  • Onshore thermal recovery wellhead & x-mas tree
  • Conventional Steam injection and oil recovery wellhead & x-mas tree
RockySea Petro has more than 40 years of experience in oil and gas wellhead & x-mas tree and valve production, with advanced manufacturing and testing equipment, can produce a variety of pressure levels, material levels, specification levels of well control equipment. After more than 20 years of development, Various types of thermal recovery wellhead & x-mas tree equipment have been formed, used in many oilfields in the world. RockySea Petro’s thermal recovery wellhead & x-mas tree are mainly of the above types.


Description

Conventional steam injection and oil recovery wellhead & x-mas tree is low pressure and high temperature oil and gas wellhead & x-mas tree, which is connected by a clamp or flange: Clamped thermal recovery wellhead & x-mas tree:



Feature

  1. The stem seal of valve is a high temperature resistant composite seal. The seal between valve plate and valve seat and the seal between valve body and valve seat are both metal seals. High temperature seal is reliable.
  2. Wedge gate valve, small size and light weight
  3. Clamp type connection, easy to operate
Flanged thermal recovery wellhead & x-mas tree:



Feature

  1. The stem seal is a high temperature resistant composite seal. No leakage at high temperature and high pressure. After thermal calculation, the pressure and load components are safe and reliable at high temperature.
  2. The surface of valve seat and valve plate is sprayed with cemented carbide. The seal between valve seat and valve body is high temperature resistant and non-metal seal with good performance.
  3. The valve is a rising rod structure. There is a protective cover on the hand wheel to visually check the opening or closing of the valve. And it has the function of preventing sand and dust.
  4. Flange connection. The high temperature and high pressure seal in the connection is reliable.


Data Sheet

Model  ParameterKR78/65-21KR78/65-35
Working pressure   psi30005000
Nominal diameter (in)2-9/16,3-1/16,4-1/162-9/16,3-1/16,4-1/16
Top flange of tubing head7-1/16“~18-3/4”7-1/16“~21-1/4”
Bottom flange of tubing head7-1/16“~21-1/4”7-1/16“~21-1/4”
Working temperature ℃380
Working mediaCrude oil /Natural gas /water steam
Material classBB/CC/DD/EE/FF
Specification levelPSL3/PSL3G/PSL4
Performance levelPR1
