Choke Valve

Date:2024-05-06 Popularity:683

RockySea Choke Valve



  • The strictest quality standards on Choke valve
  • 25 years Choke valve manufacturing experience
  • Full support on your customised requirement
RockySea Petro Petro manufactures Choke valve in China. We have our own factory of Choke valve. RockySea Petro Petro provide the high quality and competitive price on Choke valve for you. Contact us now for Choke valve quotation.


Description

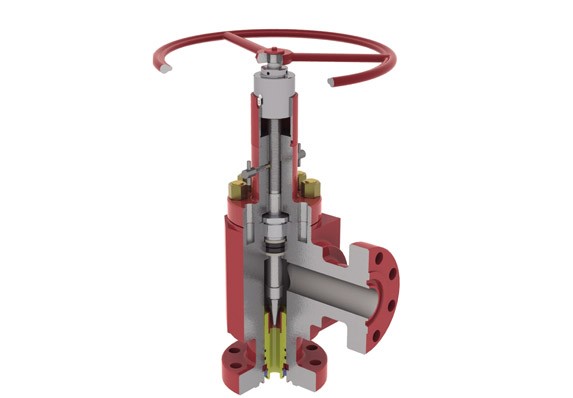

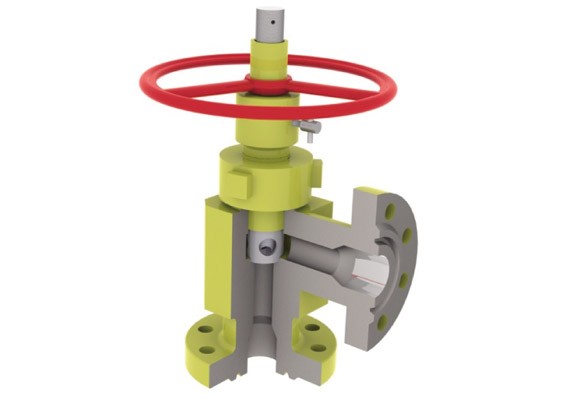

The choke valve is a type of control valve which is designed to accurately control the flow rate of the wellhead and X-mas tree, in addition to regulating surface pressure in the pipeline, so that the pressure in the pipeline doesn’t affect the flow rate. RockySea Petro produces two types of compliant choke valves, i.e. a positive choke valve and an adjustable choke valve, both fitted with anti-abrasion and anti-corrosion features, and capable of meeting varied oil/gas production requirements.





Features

  • Convenient to adjust the flow rate.
  • Easy to check the choke readings
  • Locking device on stem thread to make sure the flow rate would never change optionally after adjustment
  • Accurate flow rate adjustment.
  • Long service life.
  • Hard alloy stem head and seat with good anti-corrosion and anti-abrasion performance.


Data Sheet

Rated working pressure(psi)2000~15000
Nominal diameter(in)2 9/16, 3-1/16, 3 1/8,4-1/16
Choke bore(in)1~2
Temperature classLU, PU Y
