Coated Sucker Rod

Date:2024-05-08 Popularity:844

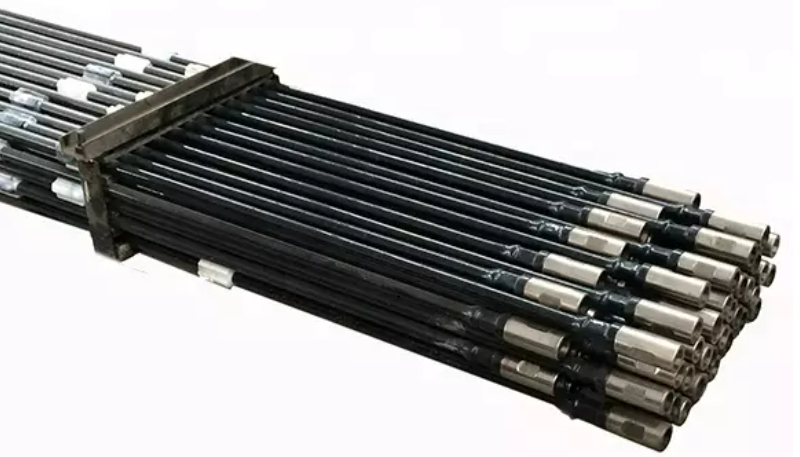

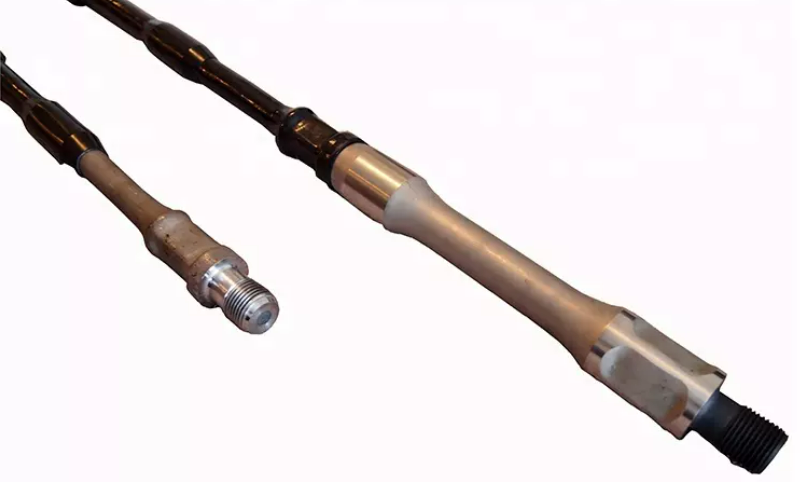

RockySea Coated Sucker Rod



With the increase of working time, conventional sucker rods are prone to corrosion and eccentric wear during operation, and are not suitable for harsh working conditions. In 2012, RockySea Petro developed a fully coated sucker rod. By using HDPE resin to fully coat the sucker rod body, the anti-corrosion and anti-abrasion of the sucker rod is realized. And this tech of RockySea Petro has gained patent in China, Canada and the United States.


Description

It is the ideal matching products of liner tubing. For the oil well that uses the ordinary tubing, we add the centralizer on the sucker rod body to improve the service life of sucker rod and tubing. . The coated layer is on the surface of the rod. Overall coated polymer material is the most effective anti-corrosion and wear-resistant technology.

RockySea Petro is the leading manufacturer of coated sucker rod in China.In order to improve the anti-corrosion and wear resistant performance of sucker rod, on the basis of Canada advanced liner tubing technology, RockySea Petro Company developed the HDPE coated sucker rod production line.

Smooth surface and low friction coefficient with steel helps to reduce load of pumping unit and it has energy saving effect. RockySea Petro coated sucker rod already applied for a patent. New and used rods are all available for RockySea Petro coated tech. Now our annual processing capability is 600,000 joints.


Features

Application
The coated sucker rod of RockySea Petro is especially suitable for high water cut oil wells with high corrosion and prone to eccentric wear.

  • Anti-corrosion and anti-abrasion.
  • Anti-scaling
  • New and used sucker rod and pony rod all available
  • Overall length HDPE coated

Data Sheet

The following is RockySea Petro coated layer performance data sheet.

Coated Layer Performance
SNItemPerformanceExecution Standard
1Density/ g/cm31.1GB/T1033
2Vicat Softening Temperature / ℃≥180GB/T1633
3Tensile Yield Strength/ MPa≥28GB/T8804.3
4Elongation at Break  Rate/ %≥150GB/T8804.3
5Shore Hardness/ HD≥80GB/T2411
6Mortar wear rate/ mg/h≤3.5Appendix
