Offshore Wellhead And X-Mas Tree

Date:2024-05-06 Popularity:674

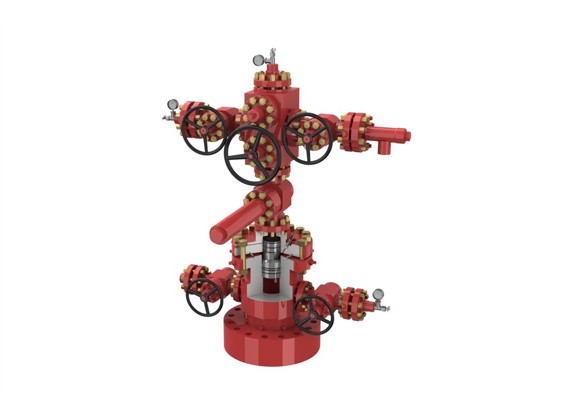

RockySea Petro Offshore Wellhead And X-Mas Tree


  • According to the production needs, the main channel can be equipped with rubber valves for progressing cavity pump oil recovery.
  • The main channel is equipped with a liquid-controlled safety valve to remotely close the wellhead in case of emergency.
  • The main valve and paraffin valve of christmas tree adopt the combined structure, the overall height is low.

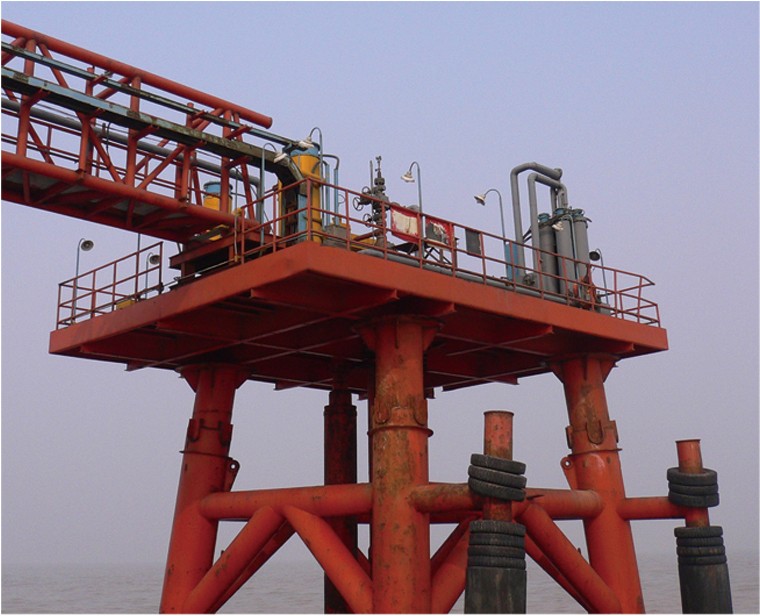

RockySea Petro’s offshore oil wellhead meets the requirements of offshore oil and gas recovery. Because of space limitation, the christmas tree is integral.


Description

RockySea Petro has more than 40 years of experience in International Standard wellhead and christmas tree production, with advanced manufacturing and testing equipment, can produce a variety of pressure levels, material levels, specification levels of  wellhead and christmas tree. Offshore wellhead and X-mas tree is designed to solve the problem of space limitation faced in offshore platform oil and gas wells, and adopts a complex integral design. This offshore wellhead and X-mas tree is usually machined from one steel bar, thus decreasing the overall height of wellhead and X-mas tree equipment. To increase its safety, this equipment is fitted with a hydraulic safety valve.



RockySea Petro’s offshore wellhead equipment has many special designs to meet the needs of offshore oil recovery.

  1. BIW penetration
    In order to further improve the tightness of the cable, we use BIW penetration.
  2. Optimization of cable seal
    RockySea Petro redesigned the structure of the cable seals, turning the original V-shaped seals into tapered seals.
  3. Switch indicator of gate valve
    We changed the structure of the gate valve and added a Switch indicator on the valve bearing box, as shown in the figure. Observe the position of the indicator ring to determine the status of the valve on/off.
  4. Optimization of gate valve torque The rod seal is made of polytetrafluoroethylene with skeleton, so the seal is reliable.The new type of rod seal structure has small switching torque and 3 1/8 “ valve can be turned without pressure by a finger.


Features

The equipment has an integral BIW cable type and three single cable types to suit different requirements.

  • Equipped with BIW cable penetration and fitted adapter flange and hanger.
  • Segregated tubing head spool. Top and bottom parts are connected by insert type locking piece. This structure means the X-mas tree could be adjusted in any direction during installation.
  • Hydraulic safety valve in main drift diameter to achieve remote shutdown of wellhead in an emergency
  • Combined master valve and swab valve to decrease the offshore wellhead & X-mas tree height


Data Sheet

Working pressure (PSI)3000, 5000, 10000,15000
Nominal diameter (inch)2-9/16、3-1/8、4-1/16
Working temperature ℃PU (-29℃-121℃)
Working mediaCrude oil/Gas
Material classBB/CC/DD/EE/FF
Specification levelPSL2, PSL3/3G,PSL4
Performance levelPR1 PR2
