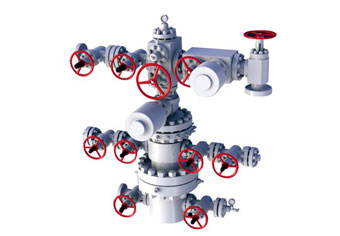

  • Eccentric Rotating Wellhead & X-Mas Tree
    Eccentric Rotating Wellhead & X-Mas Tree

    RockySea Petro Eccentric Rotating Wellhead & X-Mas TreeFull support on your customised requirementThe strictest quality standards on Eccentric rotating wellhead and X-mas tree25 years Eccentric rotating wellhead and X-mas tree manufacturing experienceRockySea Petro Petro manufactures Eccentric rotating wellhead and X-mas tree in China. We have our own factory ofEccentric rotating wellhead and X-mas tree. RockySea Petro Petro provide the high quality and competitive price on Eccentric rotating wellhead and X-mas tree

    VIEW DETAILS
  • Desulfurization And Denitrification Oilfield Steam Boiler
    Desulfurization And Denitrification Oilfield Steam Boiler

    RockySea Petro Desulfurization And Denitrification Oilfield Steam BoilerThe utilization rate of lime can be improved and the cost of desulfurization can be saved by adopting the integration of desulfurization and dust removal.The regeneration of absorbent, desulfurization slag and precipitation are carried out outside the tower, which reduces the possibility of scaling in the tower.With NaOH desulfurizer, the circulating solution is basically NaOH aqueous solution, and there is no corrosion and blockag

    VIEW DETAILS
  • Water Injection Wellhead And Christmas Tree
    Water Injection Wellhead And Christmas Tree

    ‌RockySea Petro Water Injection Wellhead And Christmas TreeAccording to casing and well condition, Water Injection Wells can be divided into large casing well, normal well and small diameter well.According to the pipe string structure Water Injection Wells can be divided into support type and suspension type.According to their functions, water Injection wells are divided into stratified injection Wells and general injection wells.In the process of oilfield development, special water injection Wells a

    VIEW DETAILS

Produced-Water Oilfield Steam Generator

Date:2024-05-06 Popularity:675

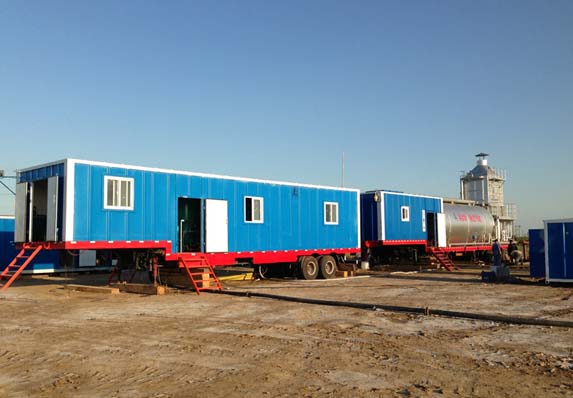

RockySea Produced-Water Oilfield Steam Generator


  • Including high-dryness Oilfield steam generator, supercritical one-through steam generator, oilfield produced water oilfield heat boiler, all-polished rod oilfield steam injection boiler, desulfurization and denitrification steam injection boiler.
  • According to the different requirements of customers, energy-saving, ultra-high pressure and environmental protection boiler types are designed.
  • RockySea Petro has developed new series of mobile on-board and skid-mounted steam injection boilers with evaporation of 9.2~30t/h and working pressure of 17.2~26MPa.
RockySea Petro has been developing the leading product of oilfield steam injection boiler (wet steam generator) since 2011 and has acquired the qualification of Class A1 boiler manufacturing in 2012. At present, the annual production capacity is 50 sets.


Description

Produced water refers to the water produced with crude oil from oil wells. The produced water usually contains oil, salt, mechanical impurities, dissolved oxygen and saprophytic bacteria and so on, causing pollution to oilfields and the surrounding environment. After treatment, it can be refilled into the oil layer or used as the water source of the gas injection boiler. Water Treatment System According to customer requirements, SanJack adopts advanced water treatment technology and successfully develops Produced-water Oilfield Steam Boiler using produced-water as water source.



We have designed the air float oil removal unit to remove oil in produced water in the water treatment device of the oilfield produced-water boiler. Then replace the strong acid removal resin with weak acid resin and increase the treatment stage to eliminate hardness; afterward, the qualified boiler for produced water treatment is supplied with water through ultrafiltration and reverse osmosis.



Produced Water Treatment Equipment

With Independent Intellectual Property Tights



Water Quality Comparison of Produced Water Steam Injection Boiler



The comparison between the above two tables shows that the requirement for raw water is greatly relaxed by produced water treatment. Except for PH value, each index is relaxed 4 times to 2000 times. More than 60% of produced water produced in oil field is within the scope of treatment and reuse. Through design improvement of boiler, the index for steam injection water production is also slightly relaxed under the premise of ensuring safe operation of boiler.

Steam Injection Boiler System

Produced Water Steam Injection Boiler mainly add suspended matter separation device, energy recovery system and convection section monitoring system. By checking the temperature changes, judge the scaling condition of furnace pipe and eliminate the hazards in time. Improve boiler’s suitability for produced water:

  • Centralize condensate in flushable and replaceable parts. Sedimentation is suitable for produced water operation.
  • Increase inlet water temperature and exceed dew point temperature of flue gas, so as to avoid condensation of water vapor in flue gas on finned tube in convection section and cause low temperature corrosion of pipe;
  • Separate suspended matter generated with high temperature, avoid corrosion and scouring under scale, and increase heat recovery;


Produced-water Oilfield Steam Generator Parameter

1). Rated evaporation:          15t/h
2). Rated working pressure:  21MPa
3). Steam temperature:         370 C
4). Rated steam dryness:       >85%
5). Thermal efficiency:           >90%)
6). Combustion mode:          dual use of oil and gas
7). Control Mode:                  PLC+Touch Screen+Industrial Computer
8). Loading mode:                 Skid-mounted and on-board

Water Treatment System Parameter

1). Oil content:      <2mg/L
2). Turbidity:          <5mg/L
3). Hardness:         <0.1mg/L
4). Mineralization: <4000mg/L
5). Fe2+:                <0.5mg/L
6). PH:                     7.5~9
