Rod Pump

Date:2024-05-06　Popularity:454

‌

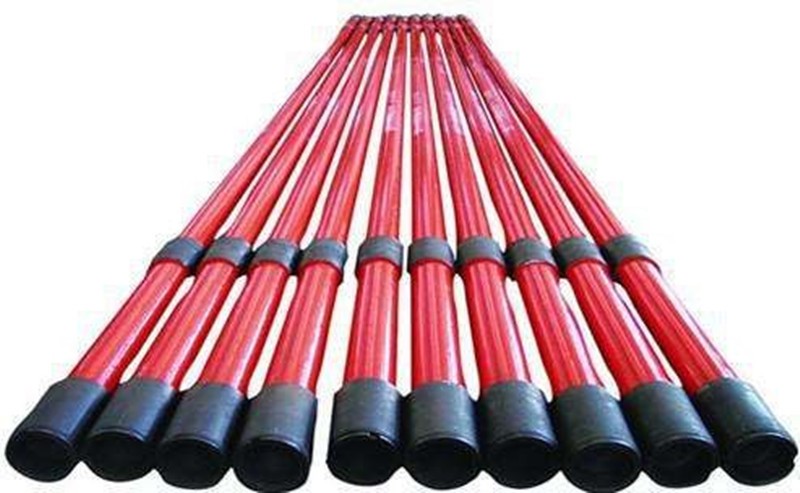

RockySea Petro Rod Pump

The raw material of rod pump parts should be inspected after heat treatment, the mechanical properties, chemical compositions and metallographic structures must be inspected by batch. The rod pump parts should be inspected several times during the processing procedure. Some key points like the outer diameter of the plunger and the inner diameter of the pump barrel should be 100% inspected.

  • Your Best Pump Manufacturers
  • Sealing performance tests must be carried out 100% after finishing the assembly of the whole rod pump.
  • Advanced production equipment for machining, spraying welding, electroplating, and honing.

Description

The plunger and the pump barrel are assembled into one body, and is inserted into the oil pipe with the sucker rod. There are fixed barrels and movable barrels. According to the position of the support assembly, it is divided into two types: the top fixed and the bottom fixed. According to the support assembly types, it is divided into cup type and mechanical type Compared with the tubing pump, the rod type pump has the characteristics of not having to take off the oil pipe when the pump is down, and has a large variety of options. Easiness to operate, saving more than half of the operating time can greatly reduce operating costs, suitable for deep well use. Rod pumping wells are widely used over the world out of China. If you are looking for pump manufacturers, RockySea Petro is your best choice.

The first letter R standing for Rod (commonly called insert). Usually Insert pumps are the first choice because they can be serviced simply by pulling the sucker rod string. Insertable pumps can be removed from the well without having to remove the production tubing. The raw material of rod pump parts should be inspected after heat treatment, the mechanical properties, chemical compositions and metallographic structures must be inspected by batch. The rod pump parts should be inspected several times during the processing procedure. Some key points like the outer diameter of the plunger and the inner diameter of the pump barrel should be 100% inspected.

Compared with the tubing pump, the rod-type oil well pump has the characteristics of no need to set up and down the tubing when lifting the pump, and a wide choice of various forms. It is easy to check the pump and save more than half of the operating time, which can greatly save operating costs and is suitable for deep well use. Rod pump can be further optimized by selecting the metallurgy and coating of various components to maximize pump life in specific well conditions.

  • Sealing performance tests must be carried out 100% after finishing the assembly of the whole rod pump.
  • Advanced production equipment for machining, spraying welding, electroplating, and honing.
  • Removed from the well without having to remove the production tubing.
  • Less service cost than a tubing pump.
  • Special service applications are available for most types.
  • Can be ran deeper than Tubing Pump.
  • Installed on the end of a sucker rod string as a complete unit.

Rod pumping wells are widely used over the world out of China. If you are looking for pump manufacturers, RockySea Petro is your best choice.


Data Sheet

Standard rod pump specifications
Specification modelTechnical Parameter
TypeModelPump diameterin(mm)Plunger length ft(mm)Barrel length ft(mm)Connecting tubing thread (in)Connecting sucker rod thread (in)Pump constant
Mechanical support top fixed thick wall rod pump20-125RHAM1.25（31.75）2~24(609~7315)Increment per foot4~34(1219~10363)Increment per foot2 3/8 NU/EU3/4in1.14
25-150RHAM1.5(38.1)2 7/8 NU/EU3/4in1.642
25-175RHAM1.75(44.45)2 7/8 NU/EU3/4in2.235
30-225RHAM2.25(57.15)3 1/2 NU/EU3/4in3.694
Mechanical support bottom fixed thick wall rod pump20-125RHBM1.25（31.75）2 3/8 NU/EU3/4in1.14
25-150RHBM1.5(38.1)2 7/8 NU/EU3/4in1.642
25-175RHBM1.75(44.45)2 7/8 NU/EU3/4in2.235
30-225RHBM2.25(57.15)3 1/2 NU/EU3/4in3.694
Cup support top fixed thick wall rod pump20-125RHAC1.25（31.75）2 3/8 NU/EU3/4in1.14
25-150RHAC1.5(38.1)2 7/8 NU/EU3/4in1.642
25-175RHAC1.75(44.45)2 7/8 NU/EU3/4in2.235
30-225RHAC2.25(57.15)3 1/2 NU/EU3/4in3.694
Cup support bottom fixed thick wall rod pump20-125RHBC1.25（31.75）2 3/8 NU/EU3/4in1.14
25-150RHBC1.5(38.1)2 7/8 NU/EU3/4in1.642
25-175RHBC1.75(44.45)2 7/8 NU/EU3/4in2.235
30-225RHBC2.25(57.15)3 1/2 NU/EU3/4in3.694
Mechanical support top fixed thin wall rod pump20-125RWAM1.25（31.75）2 3/8 NU/EU3/4in1.14
20-150RWAM1.5(38.1)2 3/8 NU/EU3/4in1.642
25-200RWAM2（50.8）2 7/8 NU/EU3/4in3.694
30-225RWAM2.5（63.5）3 1/2 NU/EU3/4in4.56
Mechanical support bottom fixed thin wall rod pump15-125RWBM1.25（31.75）1.900 NU/EU5/8in1.14
20-125RWBM1.25（31.75）2 3/8 NU/EU3/4in1.14
20-150RWBM1.5(38.1)2 3/8 NU/EU3/4in1.642
25-200RWBM2（50.8）2 7/8 NU/EU3/4in3.694
30-225RWBM2.5（63.5）3 1/2 NU/EU3/4in4.56
Cup support top fixed thin wall rod pump20-125RWAC1.25（31.75）2 3/8 NU/EU3/4in1.14
20-150RWAC1.5(38.1)2 3/8 NU/EU3/4in1.642
25-200RWAC2（50.8）2 7/8 NU/EU3/4in3.694
30-225RWAC2.5（63.5）3 1/2 NU/EU3/4in4.56
Cup support bottom fixed thin wall rod pump15-125RWBC1.25（31.75）1.900 NU/EU5/8in1.14
20-125RWBC1.25（31.75）2 3/8 NU/EU3/4in1.14
20-150RWBC1.5(38.1)2 3/8 NU/EU3/4in1.642
25-200RWBC2（50.8）2 7/8 NU/EU3/4in3.694
30-225RWBC2.5（63.5）3 1/2 NU/EU3/4in4.56
Moving barrel bottom fixed thin wall rod pump15-125RWT1.25（31.75）1.900 NU/EU5/8in1.14
20-125RWT1.25（31.75）2 3/8 NU/EU3/4in1.14
20-150RWT1.5(38.1)2 3/8 NU/EU3/4in1.642
25-200RWT2（50.8）2 7/8 NU/EU3/4in3.694
30-225RWT2.5（63.5）3 1/2 NU/EU3/4in4.56
Fixed barrel bottom fixed thick wall rod pump20-125RXT1.25（31.75）2 3/8 NU/EU3/4in1.14
20-150RXT1.5(38.1)2 3/8 NU/EU3/4in1.642
25-200RXT2（50.8）2 7/8 NU/EU3/4in3.694
