Safety Valve

Date:2024-05-06 Popularity:850

RockySea Safety Valve


  • 25 years Safety valve manufacturing experience
  • Full support on your customised requirement
  • The strictest quality standards on Safety valve
RockySea Petro Petro manufactures Safety valve in China. We have our own factory of Safety valve. RockySea Petro Petro provide the high quality and competitive price on Safety valve for you. Contact us now for Safety valve quotation.


Description

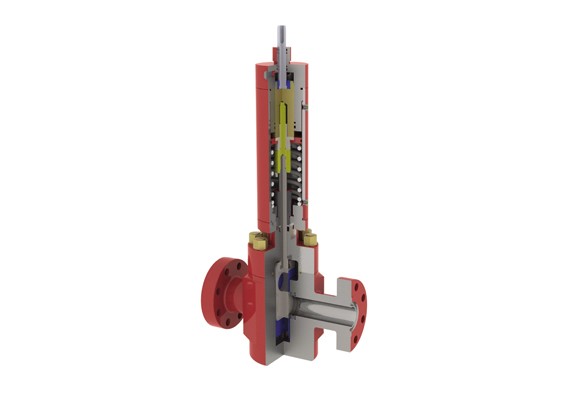

The RockySea Petro wellhead surface safety valve is a reverse acting gate valve with hydraulically actuated compressed piston actuator mounted on it. The surface safety valve (SSV) is designed to be a fail-safe and fail-close gate valve. SSV is mostly used on high pressure wellhead and X-mas tree, H2S wellhead and X-mas tree, offshore wellhead and X-mas tree and etc. as a master valve and/or wing valve. It is operated by a remote emergency shutdown device. It will automatically close with the loss of control pressure and will open automatically when the control pressure is restored.




Features

  • Recommended for use in high pressure and/or large bore applications
  • Used as a master valve or a wing valve.
  • PR2 gate valve with a long service life
  • Remotely operated with a high safety performance
  • Prompt open/close control

Data Sheet

Actuator TypeHydraulic , pneumatic
Rated working pressure(psi)3000,5000,10000,15000
Nominal diameter(in)2-1/16,2-9/16,3-1/16,3 -1/8, 4-1/16
Production specification levelPSL1 PSL2 PSL3 PSL3G PSL4
Performance ratePR1 PR2
Material classAA BB CC DD EE FF HH
