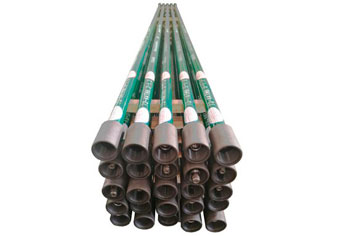

  • Sinker Bar
    Sinker Bar

    RockySea Petro Sinker BarSinker bars of RockySea Petro are exported to the United States, Canada, Europe, Africa and Middle East, and we establish cooperative relationships with international customers all over the world.RockySea Petro owns a strong ability about research, design and production of sinker bar with decades of manufacturing experience. RockySea Petro has been certified by ISO9001,  ISO14001 and OHSAS18001.RockySea Petro adopts the principle of combining intl standards, national standards and users’ views f

    VIEW DETAILS
  • Steam Injection And Oil Recovery Wellhead
    Steam Injection And Oil Recovery Wellhead

    ‌RockySea Petro Steam Injection And Oil Recovery WellheadGeothermal wellhead & x-mas treeBlowout preventer Steam Injection and Oil Recovery Integration wellhead & x-mas treeSteam injection and oil recovery dual tubing wellhead & x-mas treeSingle column dual-well thermal recovery wellhead & x-mas treeOnshore thermal recovery wellhead & x-mas treeConventional Steam injection and oil recovery wellhead & x-mas treeRockySea Petro has more than 40 years of experience in oil and gas wellhead & x-mas tree and valve

    VIEW DETAILS
  • Floating Target Single Well Gas-Liquid Multiphase Flow Meter
    Floating Target Single Well Gas-Liquid Multiphase Flow Meter

    ‌RockySea Petro Floating Target Single Well Gas-Liquid Multiphase Flow MeterFull support on your customized requirementThe strictest quality standards on Flow Meter Device25 years Flow Meter Device manufacturing experienceRockySea Petro passed ISO9001 certification in 2005 and three-system certification in 2017. The company has advanced production equipment, inspection, measurement, and test equipment, which can meet the requirements of product design, development, production, and service and has the only m

    VIEW DETAILS

Water Injection Wellhead And Christmas Tree

Date:2024-05-06 Popularity:376

RockySea Petro Water Injection Wellhead And Christmas Tree

  • According to casing and well condition, Water Injection Wells can be divided into large casing well, normal well and small diameter well.
  • According to the pipe string structure Water Injection Wells can be divided into support type and suspension type.
  • According to their functions, water Injection wells are divided into stratified injection Wells and general injection wells.
In the process of oilfield development, special water injection Wells are used to inject water into the ground to maintain or restore reservoir pressure, so that the reservoir has a strong driving force to improve the production speed and recovery rate of the reservoir. The well head of the injection well has a set of control equipment, whose function is to hang the wellhead string, seal the annular space, and control the water injection and well washing methods, such as positive injection, negative injection, combined injection, positive washing and back washing.


Description

The water injection wellhead and X-mas tree is another kind of wellhead produced by RockySea Petro, and it’s widely used in the Shengli Oilfield, the Changqing Oilfield, etc. The water injection wellhead and X-mas tree is used to increase the water-absorbing capacity of an oil reservoir and its oil-producing capacity by maintaining the desired pressure in an oil reservoir. Because the working medium of a water injection wellhead and X-mas tree is often sewage with a high degree of mineralization and at high temperatures, anti-corrosion features are integrated into the RockySea Petro wellhead and X-mas tree. This equipment can also be used in flushing wells.

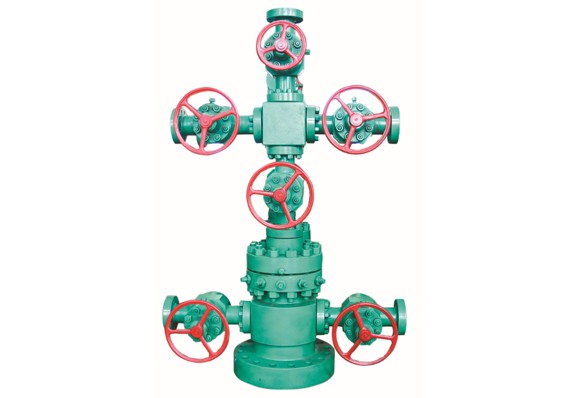

water injection wellhead



Features

  • Optimal thickness of top and bottom flange of tubing head. Decreases the weight and height effectively
  • Combined two valves, cross and adapter flange. Decreases the wellhead height greatly
  • Install hand wheel in two directions on block valve
  • Nickel based alloy metal spray technique. Superior sealing and anti-corrosion performance
  • Small in size and light in weight
  • High pressure water injection. Can be used for well flushing

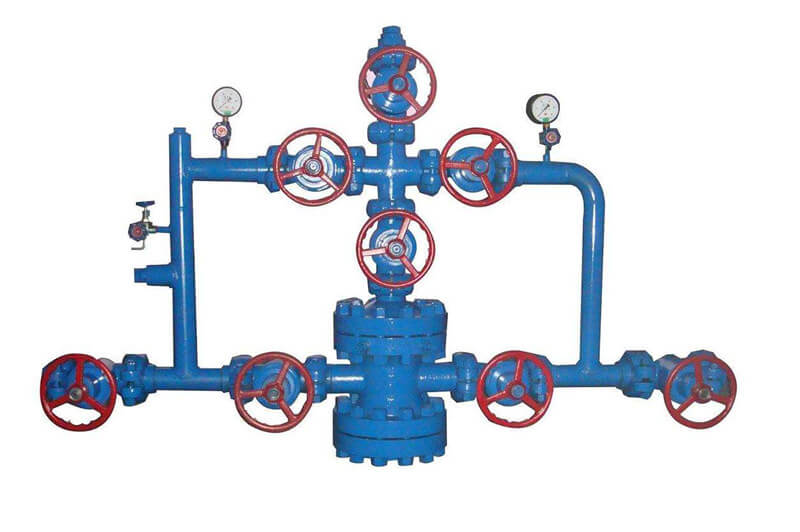

water injection wellhead and x-mas tree


Data Sheet

Model ParameterKZ65-21/35, KZ65-50 ,
Working pressure (PSI)2000, 3000, 7000
Nominal diameter (inch)2-9/16
Working temperature ℃PU (-29℃-121℃)
Working mediaWater, Crude oil
Material classBB/CC/DD/EE/FF
Specification levelPSL1, PSL2
Performance levelPR1 PR2
