PR2 Wellhead And Christmas Tree

Date:2024-05-06 Popularity:725

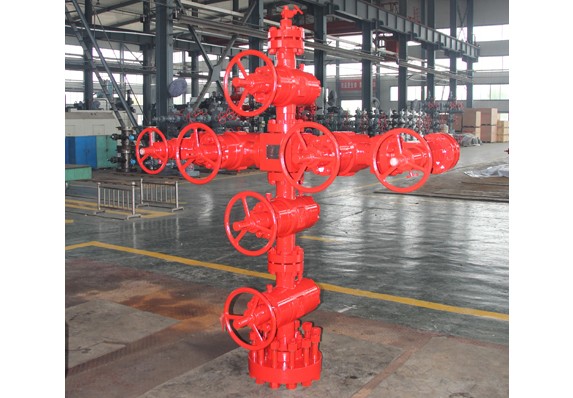

RockySea Petro PR2 Wellhead And Christmas Tree


  • The wellhead & x-mas tree has carried out rigorous tests, such as magnetic particle, ultrasonic, pressure test and and so on.
  • Do the pressure analysis to pressured and forced parts with 3D software to check the strength of wellhead & x-mas tree.
  • RockySea Petro designs various types of wellhead & x-mas tree according to International Standard.
RockySea Petro’s wellhead & x-mas tree factory is one of the main branches of RockySea Petro Group. It is a professional manufacturer specializing in the development, design, production, remanufacturing, maintenance, sales, and service of wellhead & x-mas tree. The factory has 185 employees, more than 200 sets of various large and medium-sized mechanical processing equipment, the annual output of 3500 equipment.


Description

The wellhead and X-mas tree valves produced by Samjack all conform to the International Standard. PR2 wellhead is designed to suit severe oilfield conditions.



It is mainly used in oil/gas wells with high performance requirements. The performance of all the wellhead equipment are verified by DNV verified including the casing head housing, casing head spool, tubing head spool and cross, gate valve and choke valve.


Rated working pressure(psi)3000,5000,10000,15000,20000
Wellhead Nominal Diameter(in)20-1/4,13-5/8,11,7-1/16
Valve Nominal diameter(in)2-1/16,2-9/16,3-1/16,3 -1/8, 4-1/16
Production specification levelPSL2 PSL3 PSL3G PSL4
Performance ratePR2
Material classCC DD EE FF HH


PR2 Casing Head

PR2 Tubing Head Spool Experimental Parameters:

Rated Working Pressure (psi)15000
Tubing Size (in)3 1/16”
Flange Size7 1/16
Working Temperature (℃)-46℃-121℃
Production Specification LevelPSL3G
Performance PerformancePR2F
Material ClassFF



PR2 Tubing Head Spool

PR2 Tubing Head Spool Experimental Parameters:

Rated Working Pressure (psi)15000
Tubing Size (in)3 1/16”
Flange Size7 1/16
Working Temperature (℃)-46℃-121℃
Production Specification LevelPSL3G
Performance PerformancePR2F
Material ClassFF



PR2 Choke Valve

PR2 Choke Valve Experimental Parameters:

Rated Working Pressure(psi)15000
Wellhead Nominal Diameter(in)3 1/16”
Working Temperature(℃)-46℃-121℃
Production Specification LevelPSL3G
Performance PerformancePR2
Material ClassFF


PR2 Gate Valve

PR2 gate valve is mainly used in the PR2 class wellhead and X-mas tree. It controls the opening and closing of fluid in the production process and is one of the core components of the wellhead and X-mas tree. However, PR2 class wellhead and X-mas tree with high pressure are always the disadvantage of Chinese oil wellhead equipment manufacturers due to their high design, manufacturing and test requirements. After two years of development and testing, sanJack gate valves have finally passed PR2 validation.

PR2 Gate Valve Experimental Parameters:

Rated working Pressure(psi)15000
Wellhead Nominal Diameter(in)3 1/16”
Working Temperature(℃)-46℃-121℃
Production Specification LevelPSL3G
Performance PerformancePR2F
Material ClassFF
