Sanajck Swabbing TruckData sheetFeature 1.The swabbing truck has the advantages of continuous and reliable operation, convenient parameter adjustment, high drainage efficiency, and simple handling and installation. It solves the problems of discontinuous swabbing and drainage operation, low drainage efficiency, and cumbersome equipment handling,compared with existing drainage technologies. 2.Through on-site testing, the feasibility and reliability of the on-site application of
VIEW DETAILSRockySea Petro Single Well Water Cut AnalyzerSANJACK passed ISO9001 certification in 2005 and three-system certification in 2017. The company has advanced production equipment, inspection, measurement and test equipment, which can meet the requirements of product design, development, production and service and has the only multiphase flow laboratory for Sinopec. The main products are single-screw and twin-screw oil-gas mixed pump, MFM2000 series multiphase flowmeter, LPT multiphase metering device,
VIEW DETAILSRockySea Petro Cameron U And C Ram BOPAll BOP will receive rigorous tests, such as magnetic particle, ultrasonic, pressure test and so on.AutoCAD and Solid Works computer software are used for drawing design. Also virtual prototype technology is used for simulation and verification of strength.RockySea Petro has been certified by ISO9001, ISO 14001 standard.RockySea Petro Petro owns a strong ability about research, design and manufacture, of Blowout preventer. The company can supply Cameron U and C ram BOP which
VIEW DETAILSRockySea Petro Sucker Rod Guide CentralizerIn oilfield operation, pumping jack and PCP(Progressive Cavity Pumping) systems increase operational costs associated with rod&tubing friction and paraffin deposition in production tubing. RockySea Petro has developed a series of rod guides which are also called rod centralizer that are molded directly onto the rod body to control this threat. Our rod guides for pumping jack and PCP applications come in a wide range of materials and are specifically designed to me
VIEW DETAILSRockySea Petro Casing Stop RingDatasheetUseWhen using the top thread stop ring, the following steps should be followed.1. When using the fixed screw type, first insert the sleeve, then insert the screw and use a hammer to strike.2. The conventional stop ring should be inserted into the sleeve first, and then the screw should be tightened with a wrench.3. Snap on the locking ring, directly attach the locking ring to the sleeve, lock it with a pin, and then tap in the screw.TypeThe stop rings of

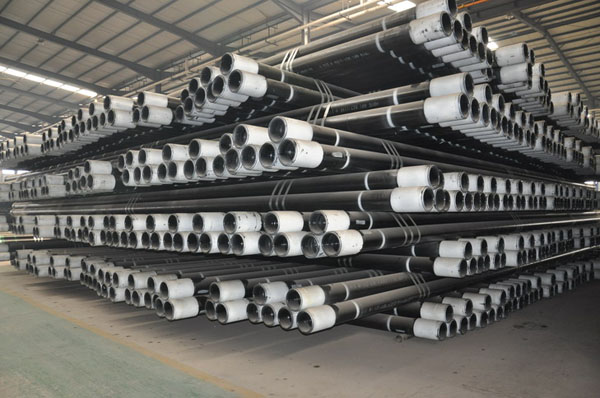

VIEW DETAILSOCTG Casing from RockySea Petro Petro, China.
Description | Tolerances | Length | Dimensions | Straightness | Wall Thickness | Weight | Drift | ID | OD | Tension | Oality | Eccentricity | Collapse | non-metallic inclusion | concentration |
7″, 29 ppf, N80, BTC, Range 3, SMLS | +1.00% – 0.50%,
not exceed 0.125″ | 38 Ft- 42 Ft | 177.8*10.36 | 0.2%L | 10.36 | 43.16KG/M | 153.90 | 157.08 | 177.80 | 3008KN | ≤0.8%D | ≤18% | 48.5MPa | THIN ≤ 2.0 THICK ≤2.0 | N/A |
20”, 94 ppf, K55, BTC, Range 3, SMLS,PSL1 | +1.00% – 0.50%, not exceed 0.125″ | 38 Ft- 42 Ft | 508*11.13 | 0.2%L | 11.13 | 139.89KG/M | 480.97 | 485.70 | 508 | 6583KN | 0.8*OD tolerance Max. | 18% | 3.6MPa | THIN ≤ 2.0 THICK ≤2.0 | N/A |
20”, 94 ppf, K55, PE, Range 3,SMLS,PSL1 | +1.00% – 0.50%, not exceed 0.125″ | 38 Ft- 42 Ft | 508*11.13 | 0.2%L | 11.13 | 139.89KG/M | 480.97 | 485.70 | 508 | 6583KN | 0.8*OD tolerance Max. | 18% | 3.6MPa | THIN ≤ 2.0 THICK ≤2.0 | N/A |
9 5/8″, 53.5 ppf, N80Q, BTC, Range 3, SMLS, PSL1 Special Drift | +1.00% – 0.50%, not exceed 0.125″ | 38 Ft- 42 Ft | 244.48*13.84 | 0.2%L | 13.84 | 79.62KG/M | 215.9 | 216.8 | 244.48 | 5531KN | 0.8*OD tolerance Max. | 18% | 45.6MPa | THIN ≤ 2.0 THICK ≤2.0 | N/A |
9 5/8″, 47 ppf, N80, BTC, Range 3, SMLS | +1.00% – 0.50%,
not exceed 0.125″ | 38 Ft- 42 Ft | 244.48*11.99 | 0.2%L | 11.99 | 69.94KG/M | 216.54 | 220.50 | 244.48 | 4832KN | ≤0.8%D | ≤18% | 32.8MPa | THIN ≤ 2.0 THICK ≤2.0 | N/A |
13 3/8”, 68 ppf, K55, BTC, Range 3, SMLS | +1.00% – 0.50%,
not exceed 0.125″ | 38 Ft- 42 Ft | 339.72*12.19 | 0.2%L | 10.92 | 101.19KG/M | 311.37 | 315.34 | 339.72 | 4756KN | ≤0.8%D | ≤18% | 13.4MPa | THIN ≤ 2.0 THICK ≤2.0 | N/A |
13 3/8”, 72 ppf, N80, BTC, Range 3, SMLS, Special Drift 12.25″ | +1.00% – 0.50%,
not exceed 0.125″ | 38 Ft- 42 Ft | 339.72*13.06 | 0.2%L | 10.92 | 107.15KG/M | 311.15 | 313.60 | 339.72 | 7390KN | ≤0.8%D | ≤18% | 18.4MPa | THIN ≤ 2.0 THICK ≤2.0 | N/A |
